Ingeco Gearbox Dealer & Supplier

Ingeco SMSR - Shaft Mounted Speed Reducers

SMSR (Shaft Mounted Speed Reducers) are a type of gearbox that is designed to transmit power from the motor to the machine with a reduced speed. These gearboxes are mounted directly on the drive shaft of the machine and eliminate the need for an additional coupling or adapter. SMSR gearboxes are used in a variety of industrial applications that require a high torque output and reduced speed.

SMSR gearboxes are a reliable and efficient way to transmit power from the motor to the machine with a reduced speed. With their shaft-mounted design, high torque output, and multiple ratios, SMSR gearboxes are suitable for a variety of industrial applications that require a high torque output and reduced speed. If you need a gearbox that is easy to install, requires minimal maintenance, and saves valuable space, consider using an SMSR gearbox for your application.

Product Features
  • Input Options : Chain, Coupling and Belt pulley.
  • Output Options : Standard Hollow Shaft, Shrink Disc, Taper Bush.
  • Accessories : Backstop, Torque Arm and Motor Mounting.
Features:
  • Ratios: Available in Single Stage (Ratio:5:1 ) & Double stage in Ratios of 13:1,15:1, 20:1 & 25:1.
  • Power:Higher power ratings for maximum torque from 0.25 Kw to 100 Kw and upto 8000Nm.
  • Models: Available in 10 different Gear Case size from ‘AE’ to ‘KE’.
  • Bore Sizes: 20 mm to 125 mm, imperial options also available
  • Mounts:Vertical, horizontal and direct drive mounting configurations
  • Lubrication: Oil splash type lubrication
  • Close grain cast iron case construction.

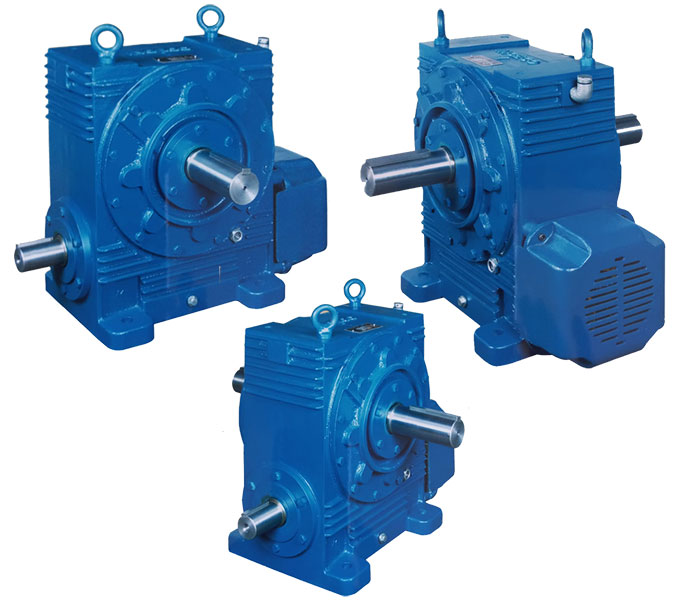

Ingeco Worm Gear Box

Worm gearboxes are a type of gear system that provides smooth and reliable power transmission between two non-parallel shafts. They consist of a worm screw that meshes with a worm gear, providing a high reduction ratio and torque output. Worm gearboxes are commonly used in applications that require slow and controlled movements, such as conveyors, lifts, and cranes.

Worm gearboxes are a reliable and efficient way to transmit power between non-parallel shafts. With their high reduction ratio, self-locking feature, and quiet and smooth operation, they are suitable for a variety of industrial applications that require slow and controlled movements. If you need a gearbox that is highly efficient, requires minimal maintenance, and has a long service life, consider using a worm gearbox for your application.

Product Features
  • Available from size 1.5” to 10”
  • Ratio from 5:1 to 70:1.
  • Power capacity upto 50 Kw.
  • Can be available in versions – Underdriven, Overdriven and Vertical output shaft Up/down.

Ingeco Extruder Gearbox

An extruder gearbox is a type of gearbox that is designed specifically for extrusion applications. Extrusion is a process in which a material, such as plastic, is forced through a die to create a specific shape or form. Extruder gearboxes are used to provide the necessary power and torque to drive the extruder screw, which pushes the material through the die.

Extruder gearboxes are a reliable and efficient way to provide the necessary power and torque for extrusion applications. With their high torque output, heavy-duty design, and precise speed control, they are suitable for a variety of industrial applications that require extrusion processes. If you need a gearbox that is highly efficient, reliable, and provides precise speed control, consider using an extruder gearbox for your application.

Product Features
  • Rigid Single Piece Thrust Housing
  • Spherical Thrust / Taper Roller Bearing.
  • Dual output shaft oil seals for severe continuous duty applications.
  • Gear ratio of 10:1, 12.5 and 15:1 and power rating upto 100 Kw.
  • Water cooling option available which is In-built.

Also available in spilt housing version
